Description

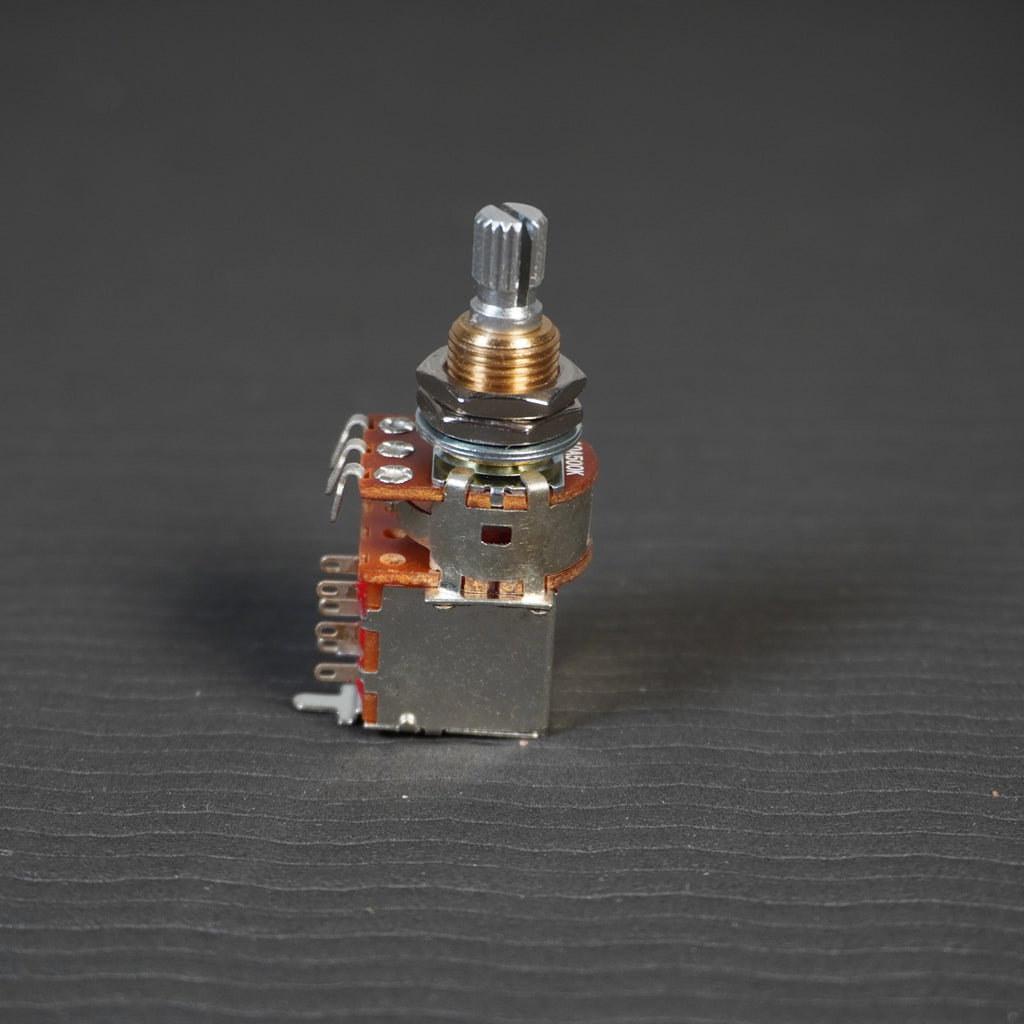

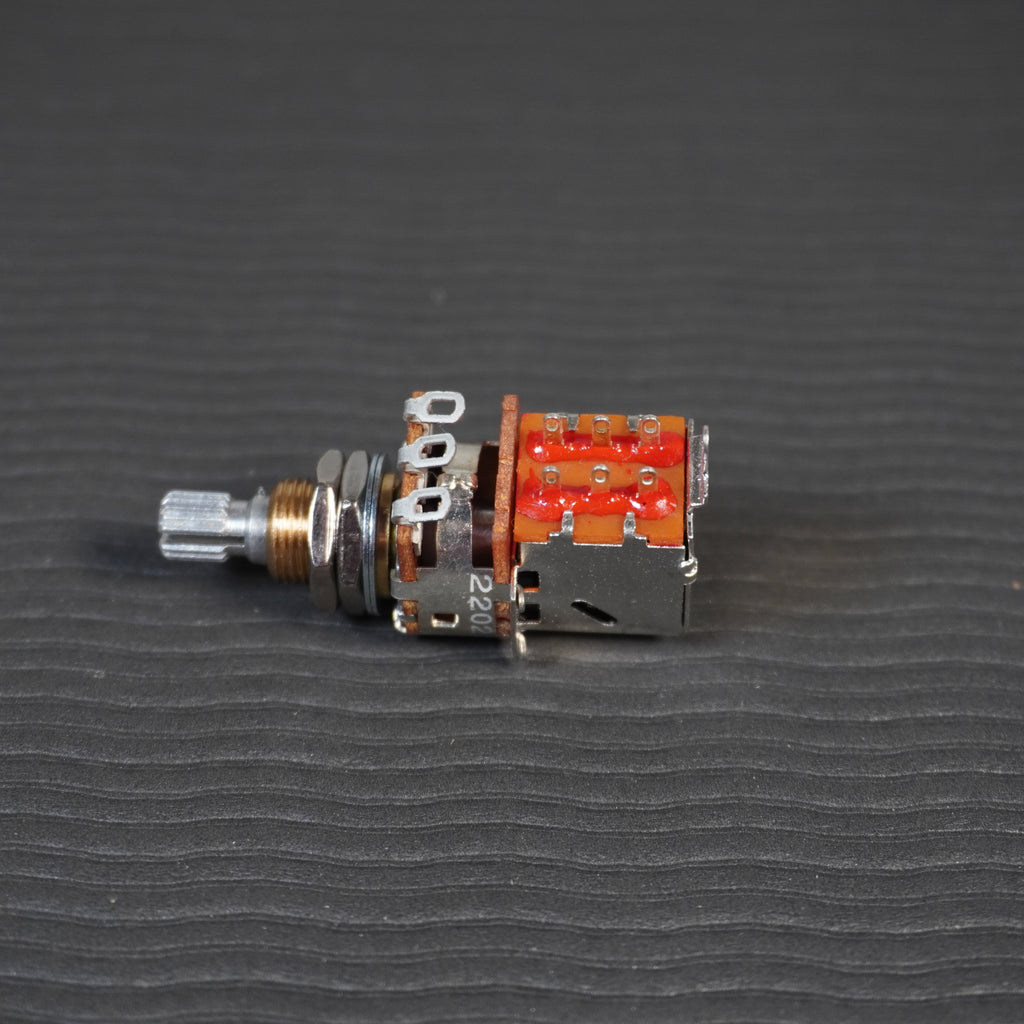

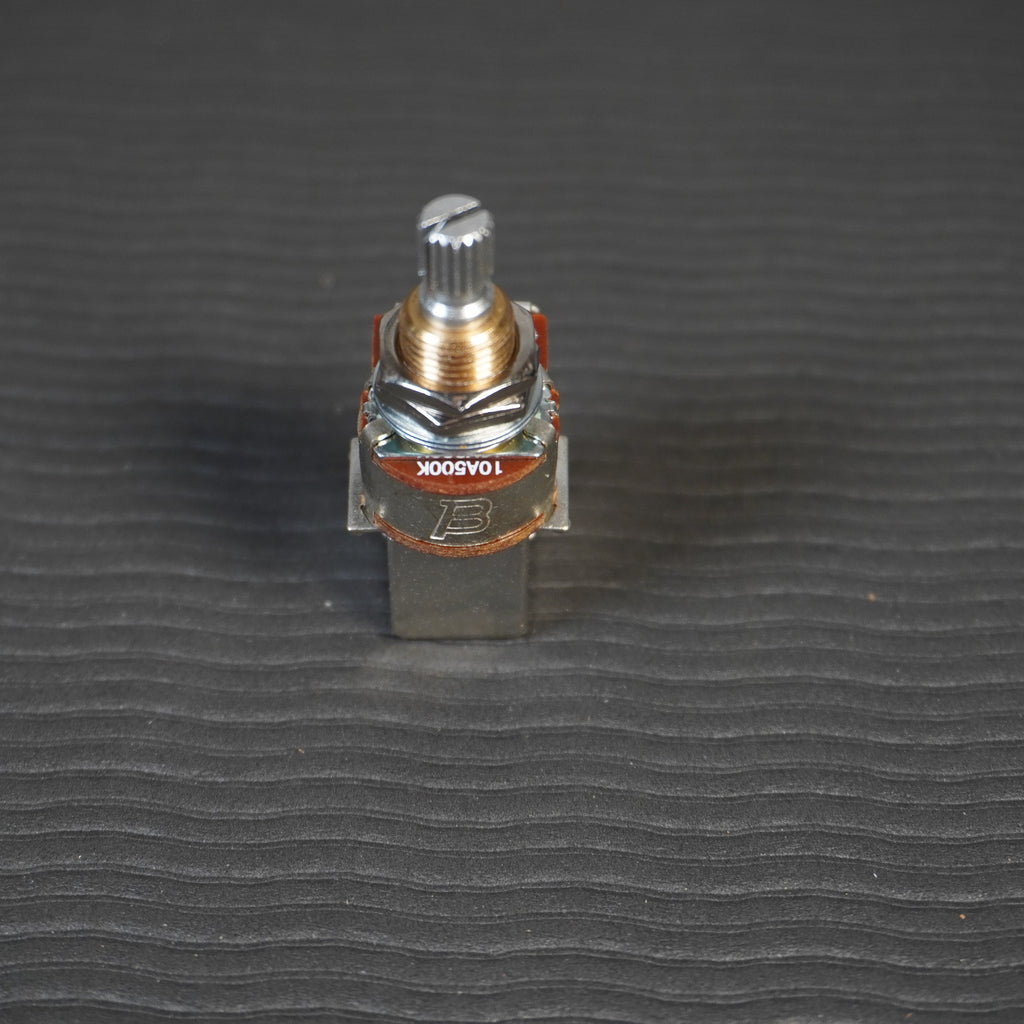

Bourns Potentiometer for guitar volume/tone controls. Brand new condition. 500k resistance value is standard for most humbucker pickups. Push Pull switch feature is a great option for using split coil/coil tap wire configurations. This pot is a great option for many types of guitars with humbucker pickups. Available at JAMS for pickup. Thanks for choosing JAMS.
**On most guitars the mounting hole on the guitar or pickguard will need to be modified for these pots to fit properly. You will need a .25" diameter hole for the shaft for this pot to fit. I have found that most guitars have smaller size holes. I often have to make this mod at the shop when I add aftermarket pots. For questions call in the store and ask to speak to a tech.**
Description:
Bourns pots with a 3/8” bushing length; shaft diameter is .24". Pot depth is approx. 1" so make sure your body cavity is deep enough. The shaft is a fine (24 tooth) knurl. Nut ,washer, and lock washer are included.
Description:
Bourns Mini Carbon Element, DPDT Push Pull Switch, Single Audio taper Potentiometer. Split Shaft, Solder Lugs.
This Bourns Guitar Potentiometer with Push-Pull Switch allows the guitarist multiple functions utilizing a single control such as split-coil switching for humbucking pickups or stacked single-coil pickups, active electronics activation, and pickup phase switching.
- 17mm Body Diameter
- 300° rotation
- Power Rating: 0.1 watt
- ¼" Knurled 18-Spline Split Shaft
- DPDT Push-Pull Switch
- ⅜" Bushing Length
- Tolerance: ±20 %
- Maximum Operating Voltage: 150V
