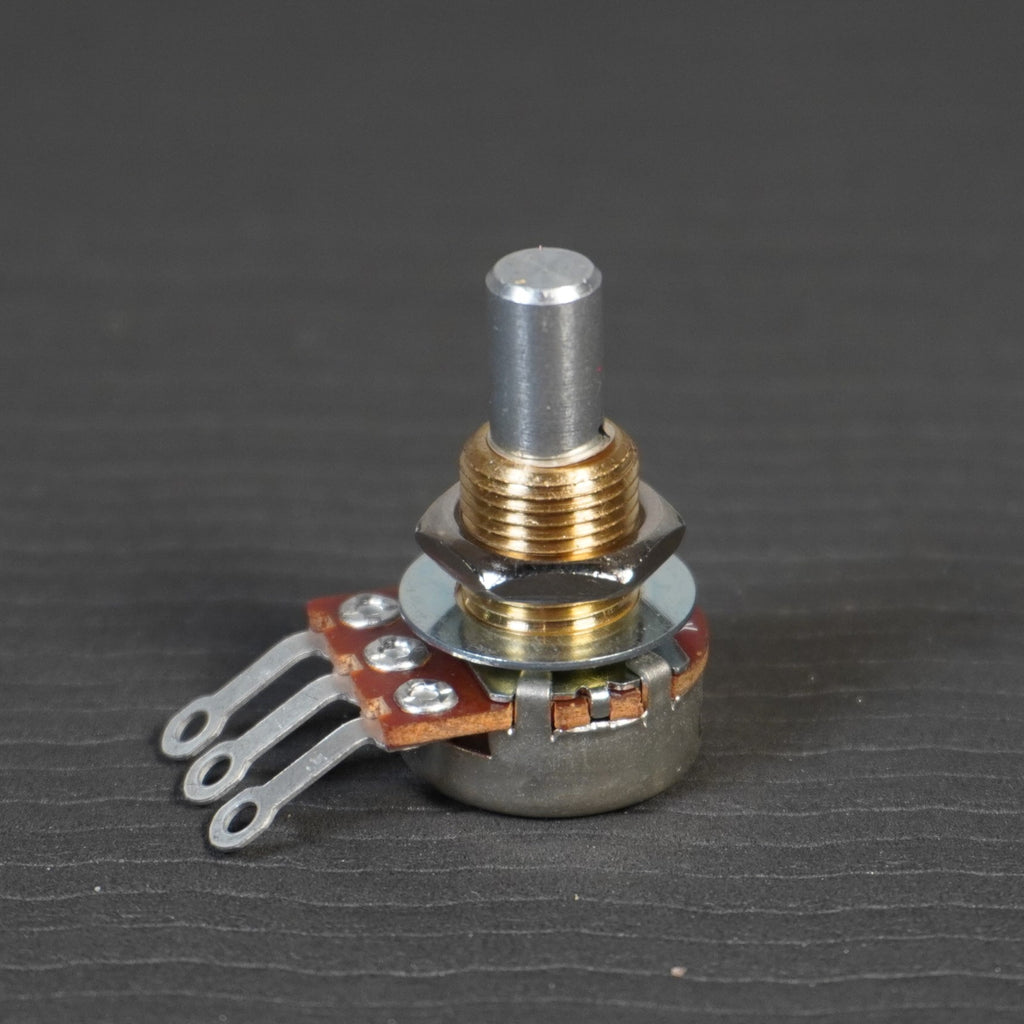

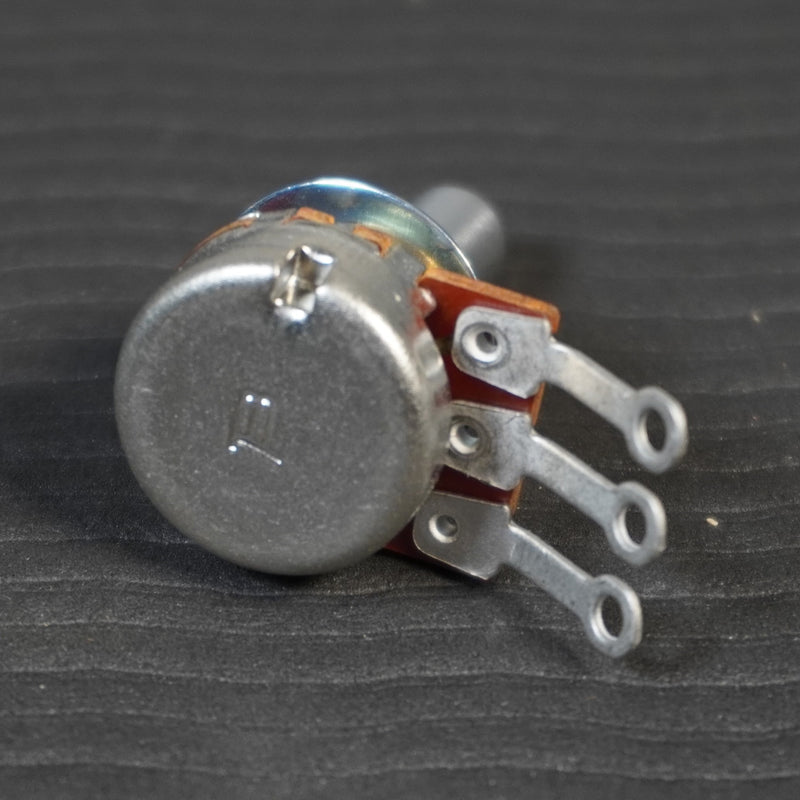

Bourns Guitar Potentiometer 500k Solid Shaft


Sale price$5.99


Bourns Potentiometer for guitar volume/tone controls. Brand new condition. 500k resistance value is standard for most humbucker pickups. Solid shaft for screw type knobs. This pot is a great option for many types of guitars with humbucker pickups. Available at JAMS for pickup.  Thanks for choosing JAMS.

**On most guitars the mounting hole on the guitar or pickguard will need to be modified for these pots to fit properly. You will need a 3/8" diameter hole for the shaft for this pot to fit. I have found that most guitars have smaller size holes. I often have to make this mod at the shop when I add aftermarket pots.  For questions call in the store and ask to speak to a tech.**


Bourns pots with a 3/8” bushing length; shaft diameter is 3/8". Solid shaft. Nut and flat washer are included.


Bourns Mini Carbon Element Single Linear Potentiometer. Solid Shaft, Solder Lugs.

This Bourns Guitar Potentiometer with Push-Pull Switch allows the guitarist multiple functions utilizing a single control such as split-coil switching for humbucking pickups or stacked single-coil pickups, active electronics activation, and pickup phase switching.

  • 16mm Body Diameter
  • 300° rotation
  • Power Rating: 0.1 watt
  • Solid Shaft
  • DPDT Push-Pull Switch
  • ⅜" Bushing Length
  • Tolerance: ±20 %
  • Maximum Operating Voltage: 150V
