Potentiometer for guitar volume/tone controls. Linear. 250k resistance value good for most single coil pickups. Available at JAMS for pickup. Thanks for choosing JAMS.
**On most guitars the mounting hole on the guitar or pickguard will need to be modified for these pots to fit properly. You will need a .25" diameter hole for the shaft for this pot to fit. I have found that most guitars have smaller size holes. I often have to make this mod at the shop when I add aftermarket pots. For questions call in the store and ask to speak to a tech.**

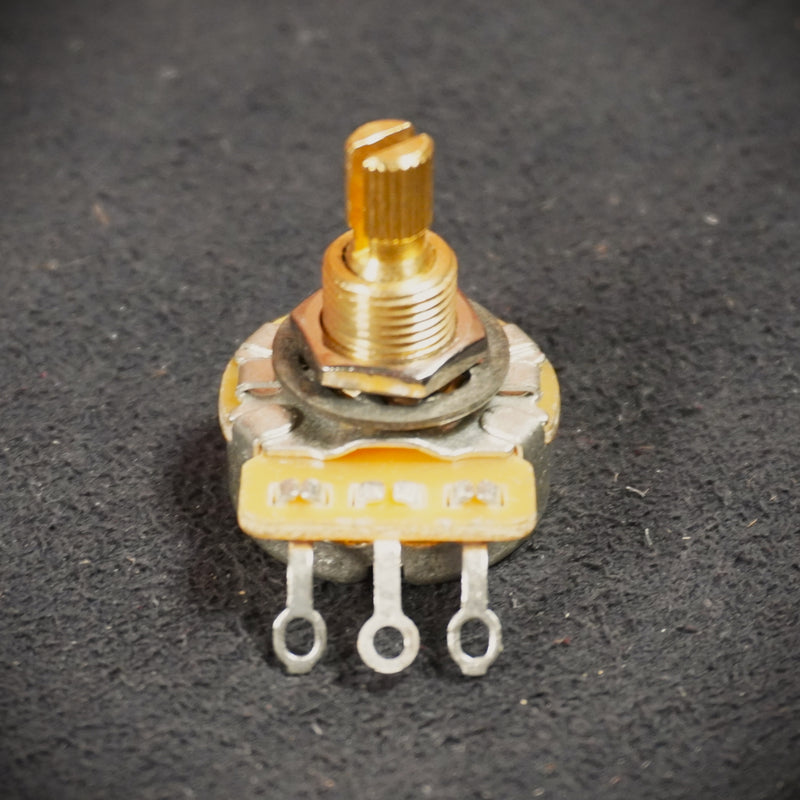

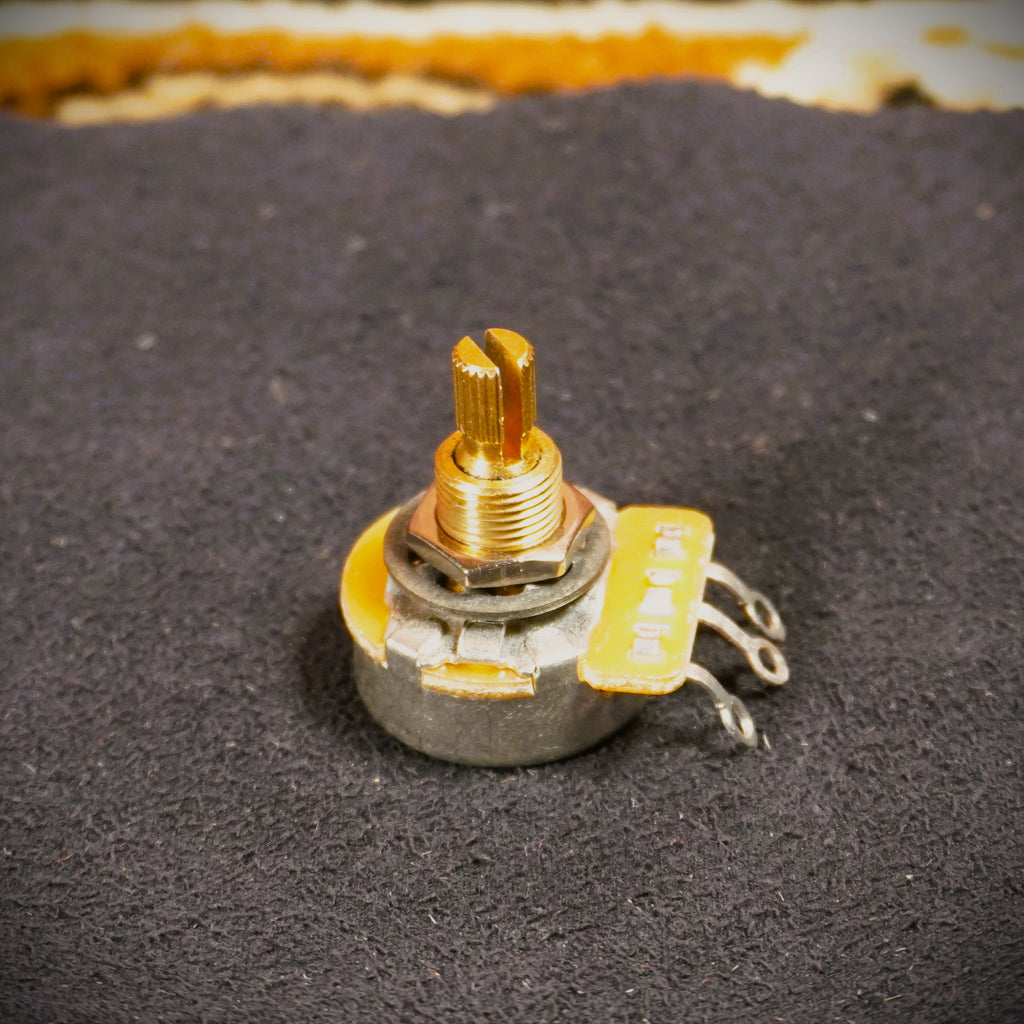

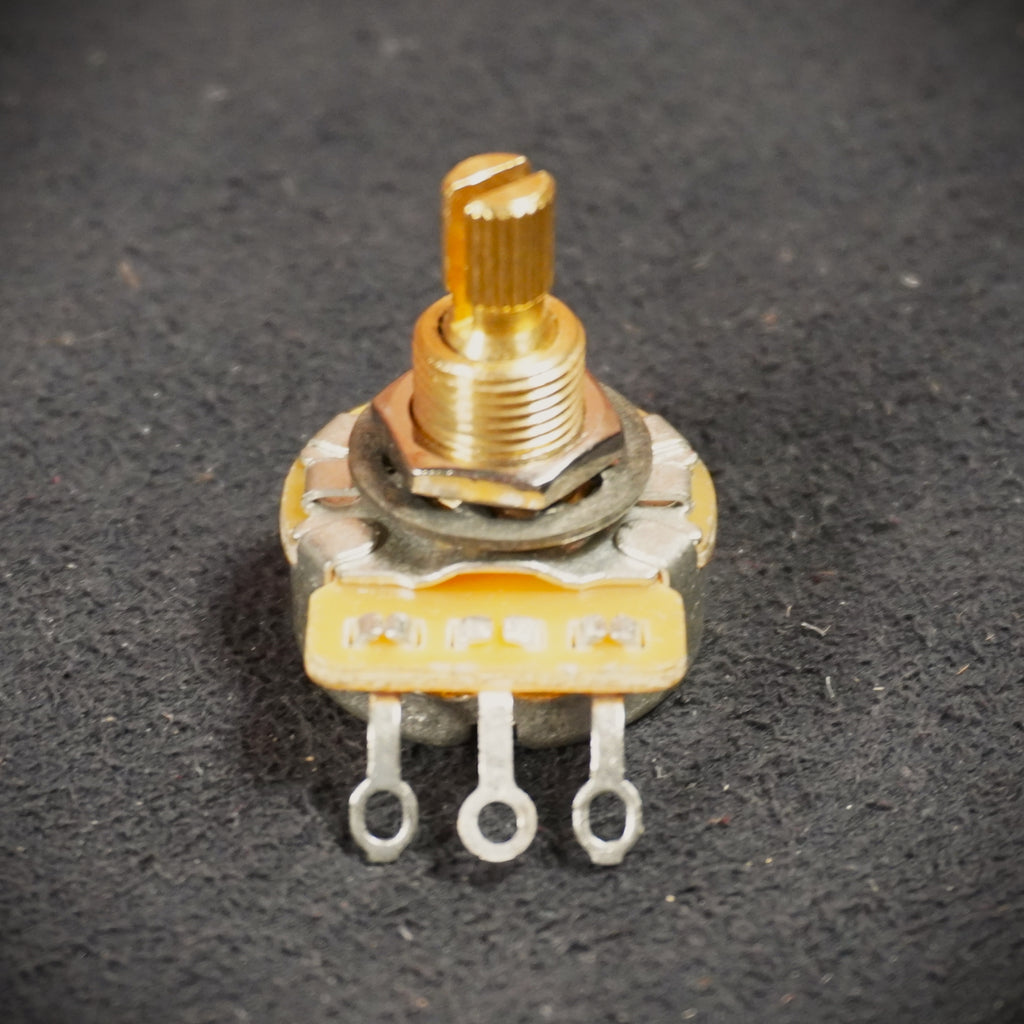

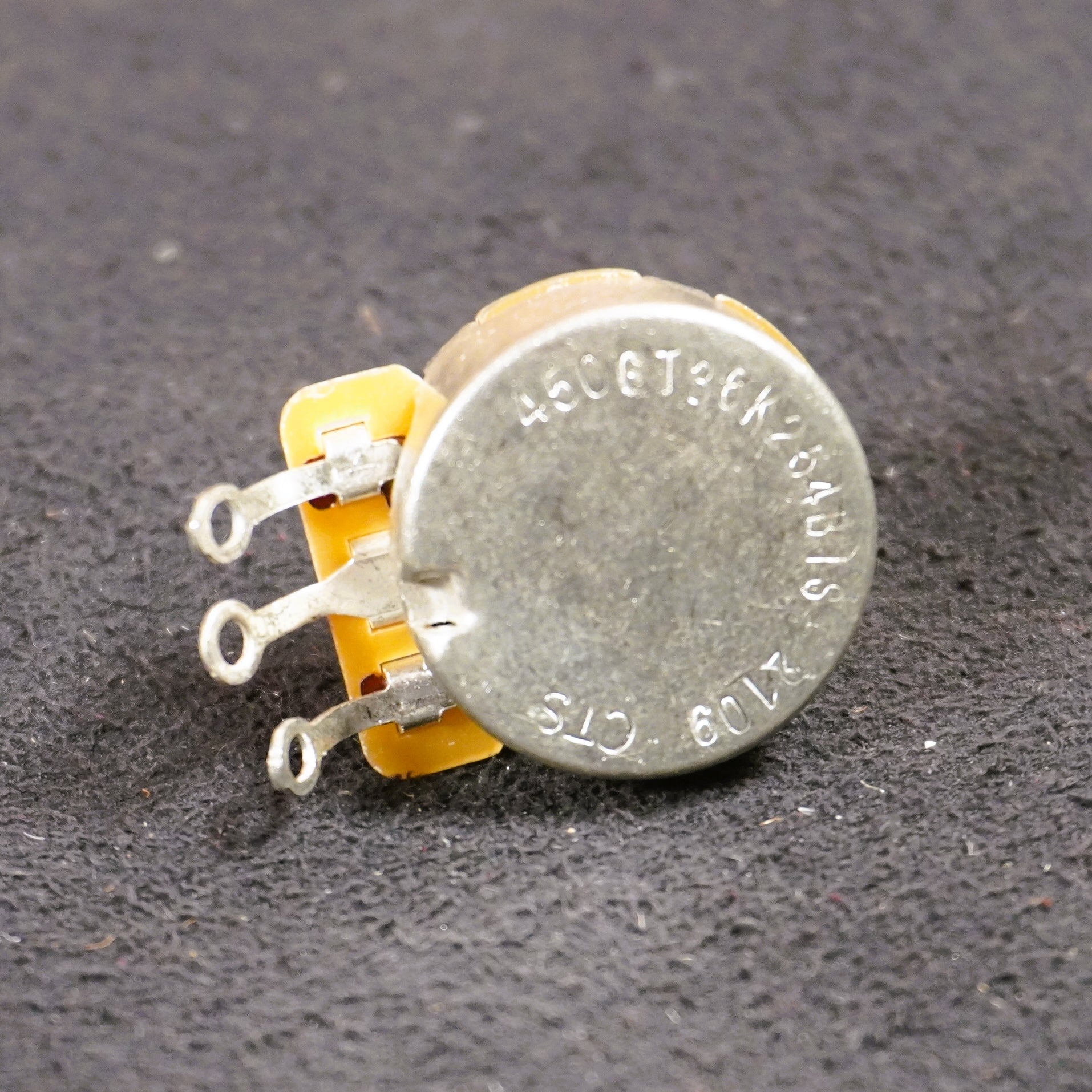

CTS pots with a 3/8” bushing length; shaft diameter is .235". Pot body is 24mm in diameter. The shaft is a fine (24 tooth) knurl. Nut ,washer, and lock washer are included.
The Series 450G Guitar Potentiometer is the same robust high-quality guitar potentiometer that has become the industry standard for top guitar manufacturers. Featuring reduced shaft wobble, low noise output, and smooth rotational feel, the Series 450G is supplied with standard tin-plated rear cover and solder lug terminals. Options include various shaft and bushing lengths, shaft trim options, and a wide variety of standard resistance values and tapers to suit guitar design requirements.
- Robust Construction
- Proprietary Anti-Static Lube
- Brass Shaft & Bushing
- Smooth Rotational Feel
- Wide Selection of Tapers
- Reduced Shaft Wobble
- Solderable Rear Cover
- Low Noise Output
