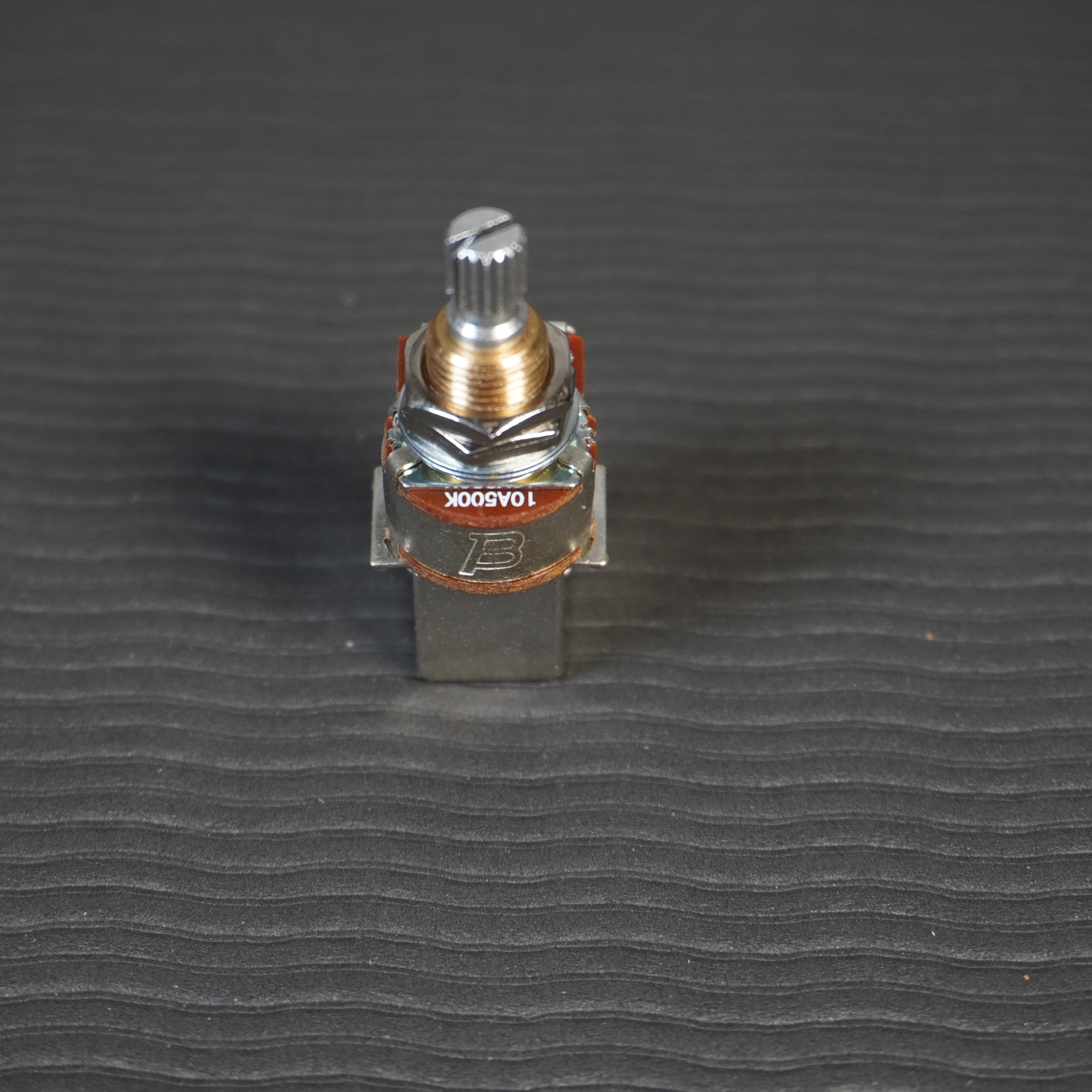

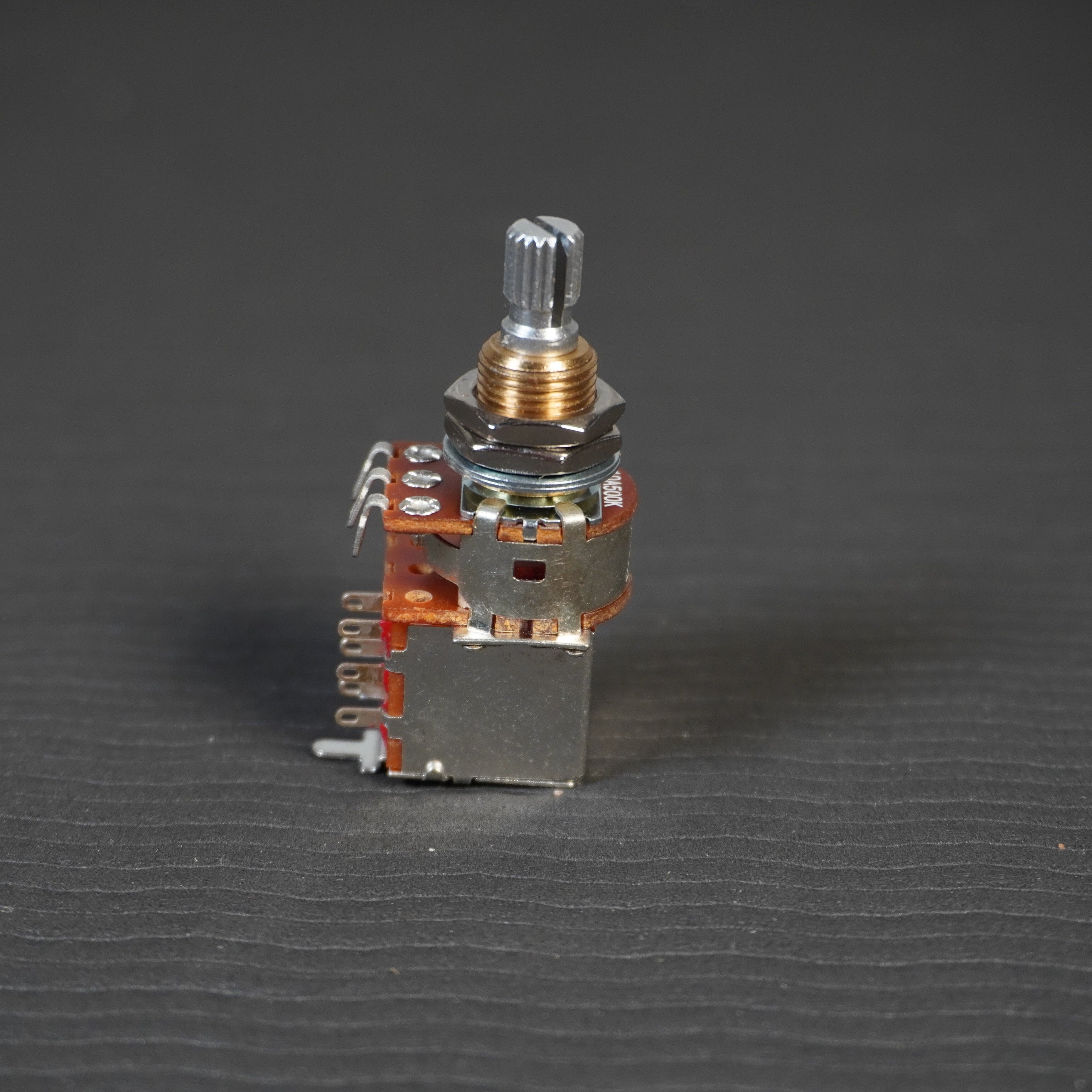

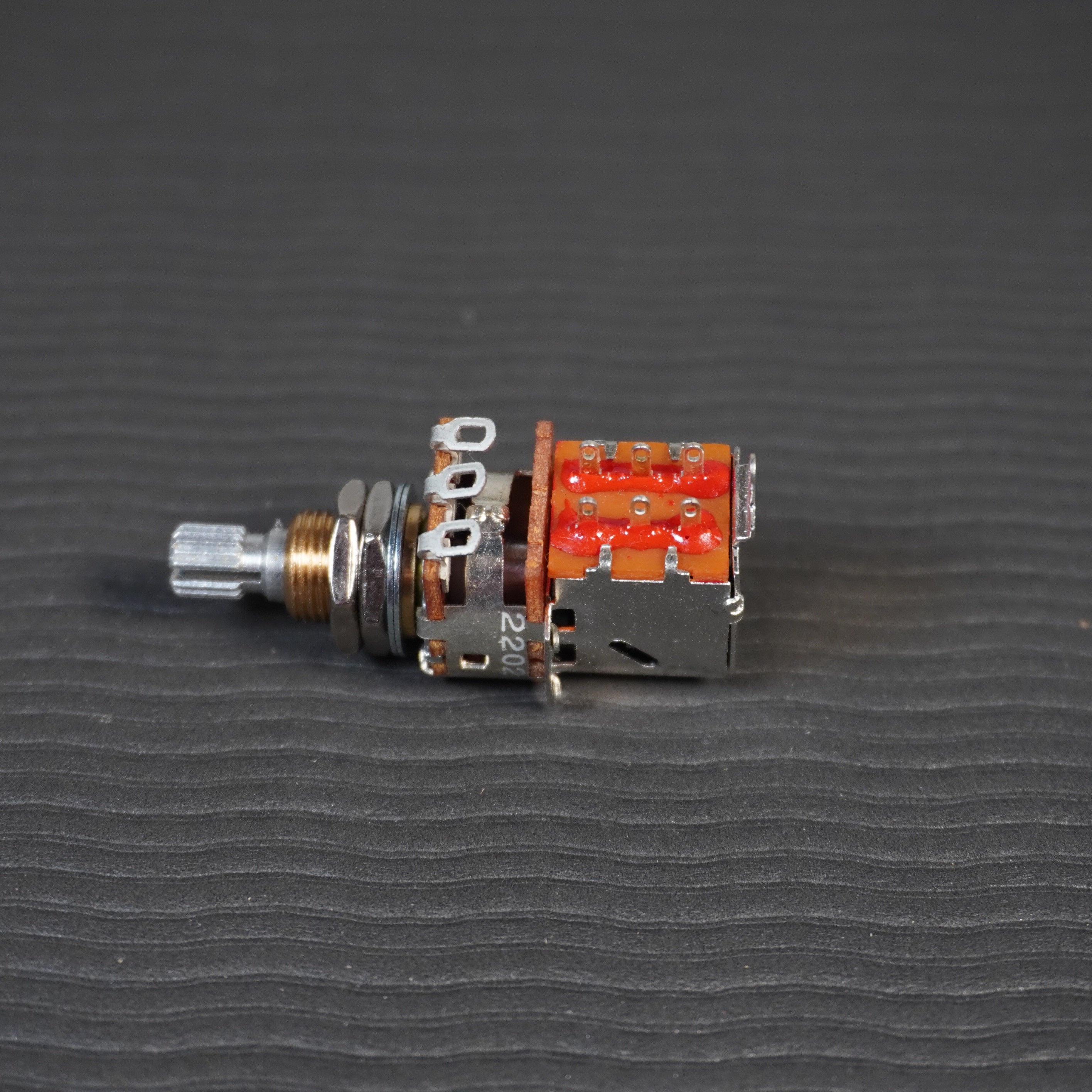

Bourns Guitar Pot 500k 3/8" Shaft Length Push Pull


Sale price$11.99


Bourns Potentiometer for guitar volume/tone controls. Brand new condition. 500k resistance value is standard for most humbucker pickups. Push Pull switch feature is a great option for using split coil/coil tap wire configurations. This pot is a great option for many types of guitars with humbucker pickups. Available at JAMS for pickup.  Thanks for choosing JAMS.

**On most guitars the mounting hole on the guitar or pickguard will need to be modified for these pots to fit properly. You will need a .25" diameter hole for the shaft for this pot to fit. I have found that most guitars have smaller size holes. I often have to make this mod at the shop when I add aftermarket pots.  For questions call in the store and ask to speak to a tech.**


Bourns pots with a 3/8” bushing length; shaft diameter is .24". Pot depth is approx. 1" so make sure your body cavity is deep enough. The shaft is a fine (24 tooth) knurl. Nut ,washer, and lock washer are included.


Bourns Mini Carbon Element, DPDT Push Pull Switch, Single Audio taper Potentiometer. Split Shaft, Solder Lugs.

This Bourns Guitar Potentiometer with Push-Pull Switch allows the guitarist multiple functions utilizing a single control such as split-coil switching for humbucking pickups or stacked single-coil pickups, active electronics activation, and pickup phase switching.

  • 17mm Body Diameter
  • 300° rotation
  • Power Rating: 0.1 watt
  • ¼" Knurled 18-Spline Split Shaft
  • DPDT Push-Pull Switch
  • ⅜" Bushing Length
  • Tolerance: ±20 %
  • Maximum Operating Voltage: 150V
